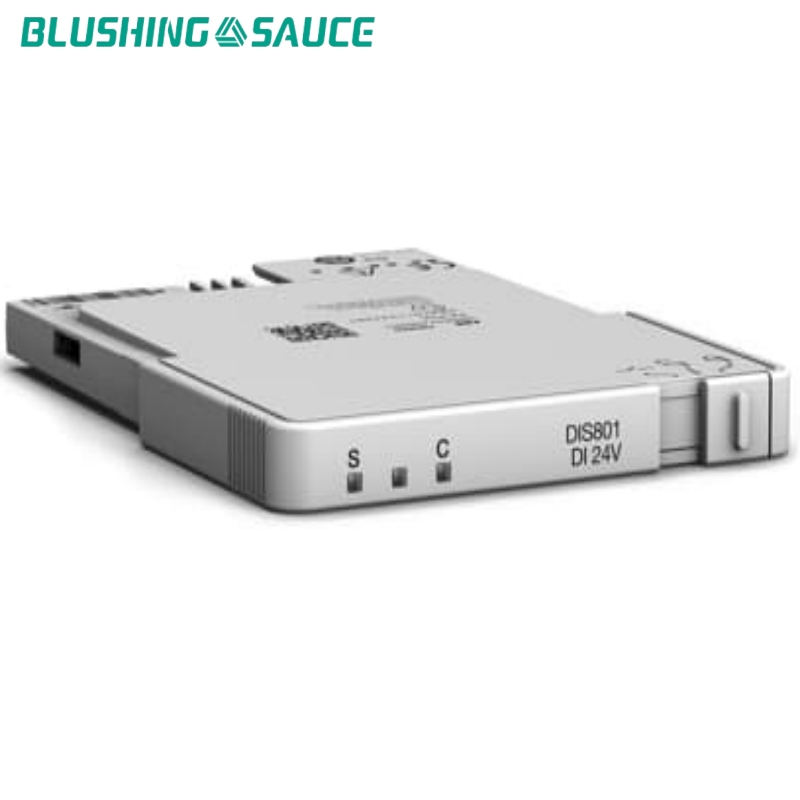

ABB DIS801 2PAA123603R1 Digital input for 2-wire, 3-wire and externally powered 4-wire field devices

• Digital input for 2-wire, 3-wire and externally powered 4-wire field devices
• Can be used in hazardous areas
• Field device power output current limited to 35 mA
• Channel to channel galvanic isolation
• Configurable software signal filter 0...100 ms
• Protected against wrong wiring
• Diagnostics:
  • Loop supervision (open circuit and short circuit)
  • Communication supervision
  • Internal power supervision
• Sequence of Events (SoE)
• DIS801 supports both Normally Open (NO) and Normally Closed (NC) 24 V loops
• Single loop granularity - each SCM handles a single channel
• Supports hot swap
• Mechanical locking slider which turns off field device power and/or output before removal
• Field disconnect function which can galvanically separate the field loop wiring from the SCM during commissioning and maintenance
• All SCMs have electronic current limitation
• Mechanical keying to prevent insertion of wrong module type after commissioning
• 24V DC powered through Modulebus
• Configurable through parameters
• LED indicators on the SCM indicate the operational state of the module
